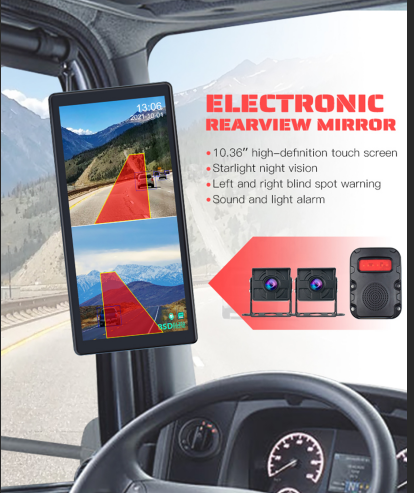

Product parameters: ETM102BTH (BSD Double Record) is a mainstream intelligent blind area monitoring equipment for large vehicles (vans, engineering vehicles, muck trucks, etc.). It is equipped with two high-definition cameras. The display host identifies pedestrians appearing in the blind area through AI algorithm, and prompts the driver with voice., and supports a sound and light alarm all the way. When a pedestrian approaches the blind area of the large vehicle, it proactively warns of danger;It also has the video recording function (plug in TF card), and records two camera videos at the same time, and stores them separately.
BSD series display
Products model :ETM102BTH
1、 Product parameters
Product Model
ETM102BTH
Screen Type
TFT-LCD
Screen size diagonal
10.36 inch
Number of Pixels
720(RGB)*1600(pixel)
Screen backlight
LED
Brightness
800cd/m2
Active Display Area
113(W) x 248(H)mm
Viewing angle
80/80/80/80(L/R/U/D)
Power supply
DC InPut 12V -24V MAX:35V
Power Consumption
6W
Signal interface(s)
AV1 / AV2 (AHD720P)
System
PAL/NTSC(Auto)
Language Menus
Simplified Chinese/Traditional Chinese/English
Operation Method
Touch / Voice control
Maximum storage
CLASS10，Max 256GB
Mode of operation
Touch / Voice control
Wake-up-from voice
View all, open the front, open the back, open the screen, close the screen
9V-40V High level trigger, automatic video conversion
LCD size
10.36 inch diagonal
Pixels
720(H) x 1600(V)
Driver element
IPS TFT active matrix
Pixel Pitch
0.1506(H) × 3(RGB) × 0.1432(V) mm
Color
RGB vertical stripe Pixel Arrangement
Response Time
25ms (typ.) (Tr+Tf)
Interface
TTL
Contrast Ratio
500 (Typ.)
Input Voltage
+3.3 (Typ.) V

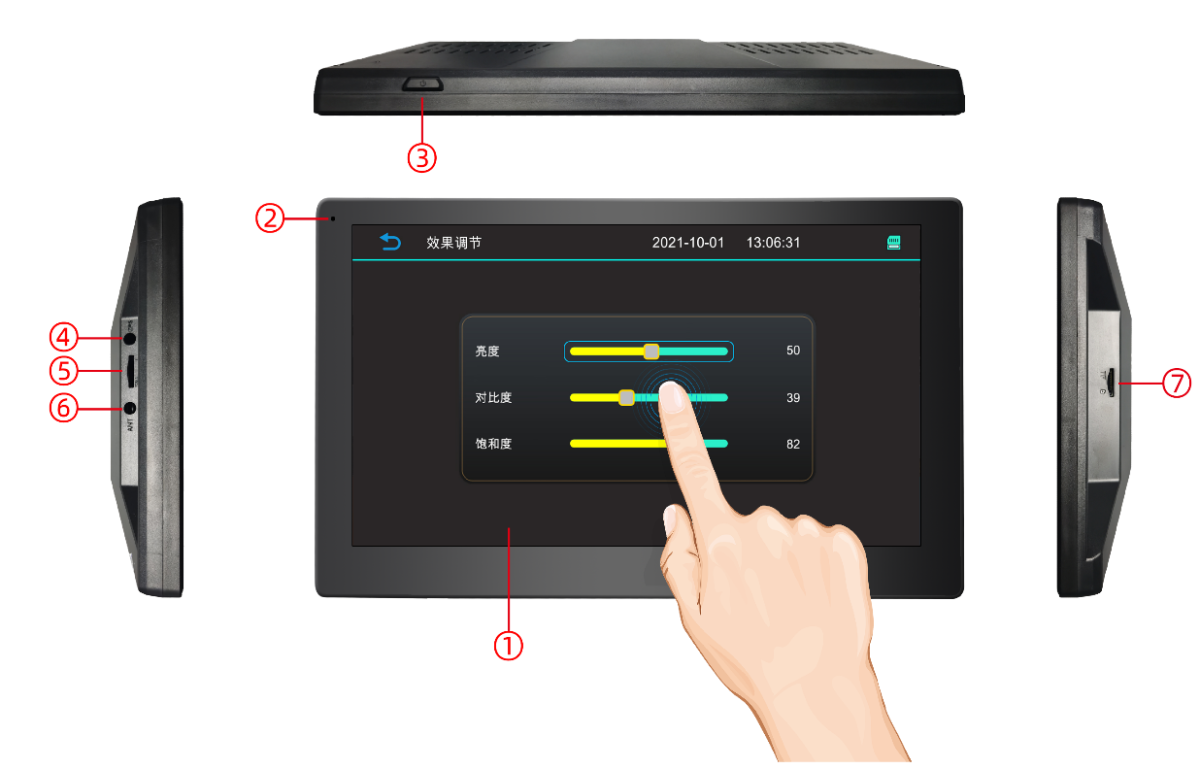

3、Keyboard function introduction
SN.
Silk screen Name
Function
SN.
Silk screen Name
Function
1
Touch monitor
5
SIM
Non-functional
2
speaker hole
6
ANT
Non-functional
3
POWER
Short press to turn on/off screen; Long press to turn on/off the host
7
TF
Please insert the memory card correctly according to the “TF Card Notch Prompt Direction” on the device, with the gold finger facing back, and press the memory card until it clicks and inserts it into place.
4
gps
Non-functional

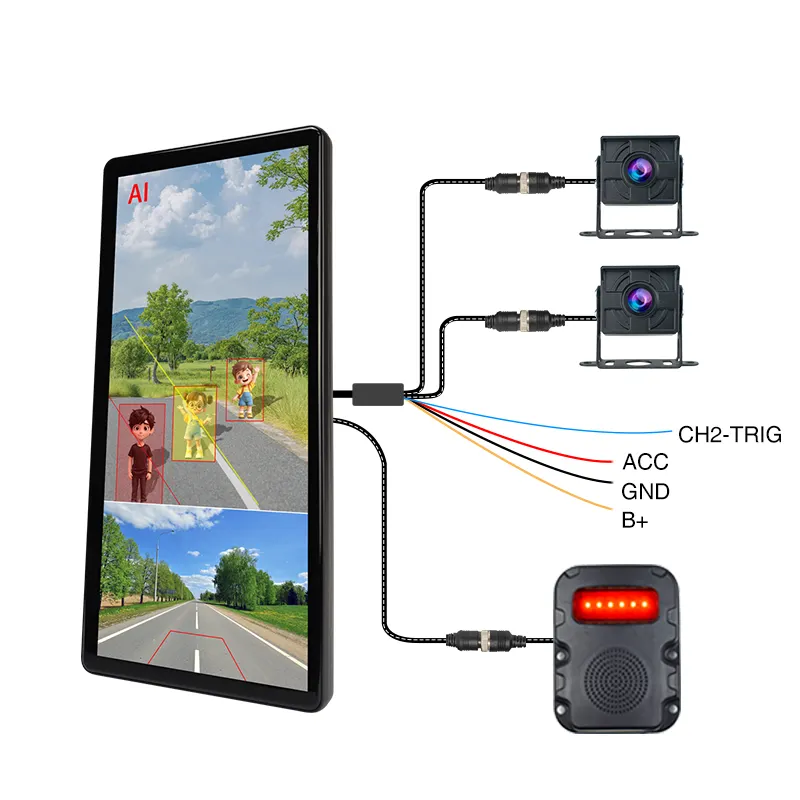

4、Connection method
No.
Wiring name
Function
1
B+
Connect to the battery anode+
2
GND
Connect to the battery cathode-
3
ACC
Connect to Ignition line
4
CH2 trig
Reversing trigger, connect to the positive pole of the reversing light
7
CH1
the 1st camera
8
CH2
the 2nd video input(Connect the rearview camera)
9
Alarm
connect a sound and light alarm

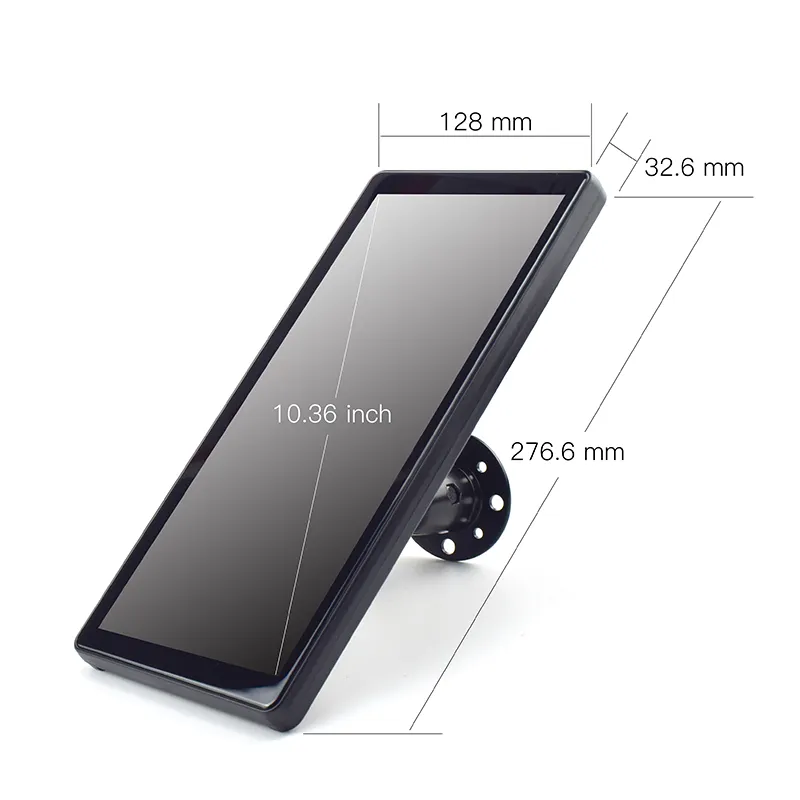

5、Product profile domensions and installation dimensions
