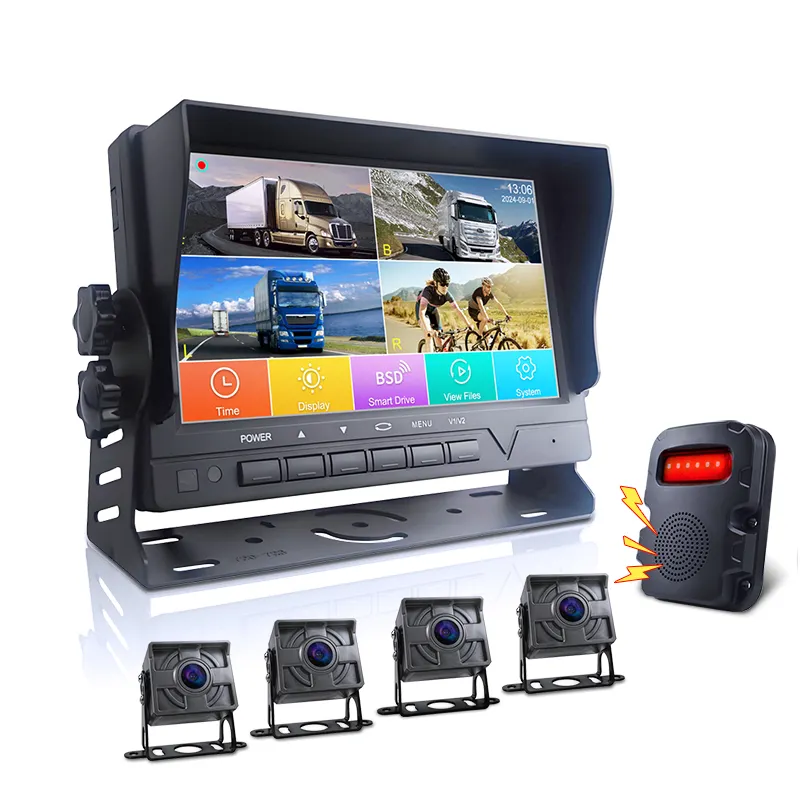

9V-40V High level trigger, automatic video conversion

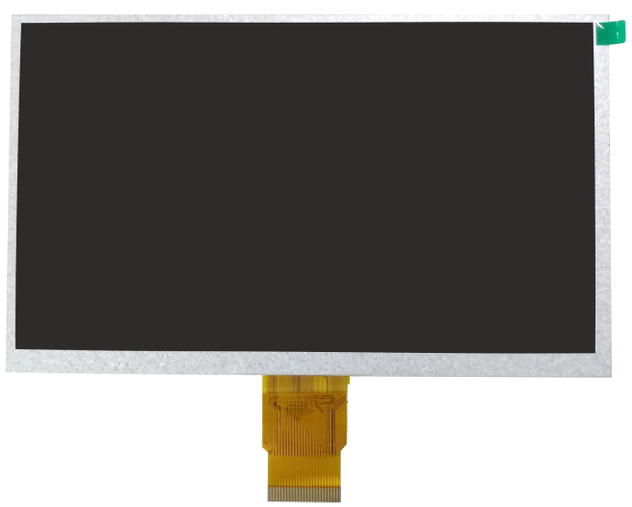

LCD size
7.0 inch diagonal
Pixels
1024(H) x 600(V)
Driver element
IPS TFT active matrix
Pixel Pitch
0.1506(H) × 3(RGB) × 0.1432(V) mm
Color
RGB vertical stripe Pixel Arrangement
Response Time
25ms (typ.) (Tr+Tf)
Interface
TTL
Contrast Ratio
500 (Typ.)
Input Voltage
+3.3 (Typ.) V

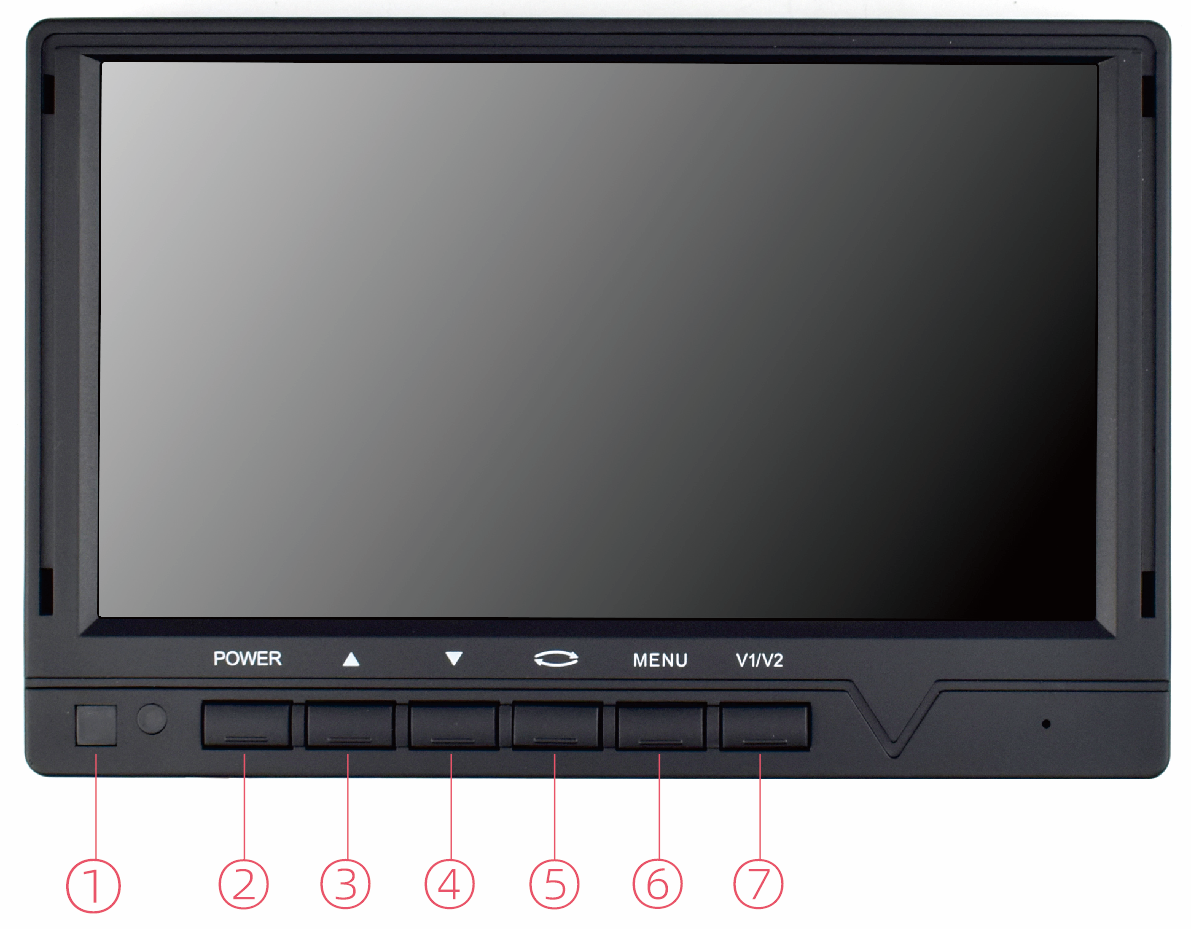

3、Keyboard function introduction
SN.
Function
SN.
Function
1
Infrared remote control receiver
5
Recording start/stop
2
Screen off and on
6
menu/return
3
UP
7
video switch
4
DOWN
8

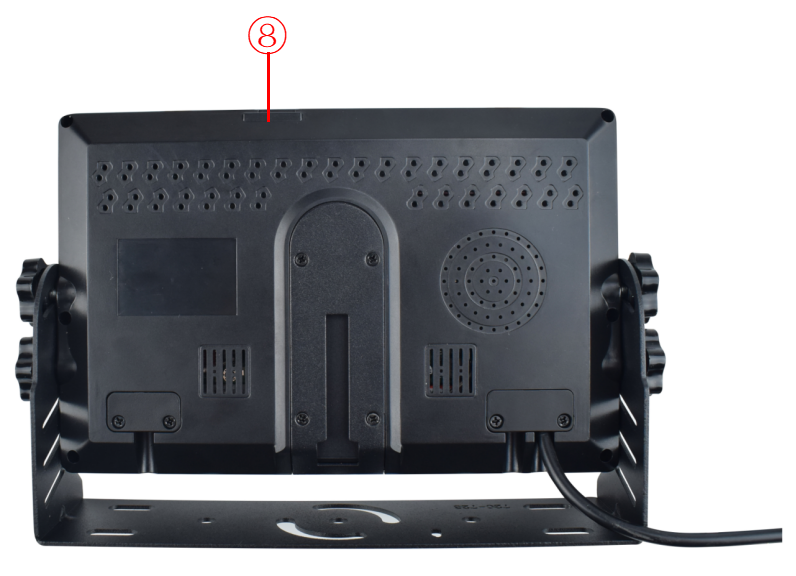

Please insert the memory card correctly according to the “TF Card Notch Prompt Direction” on the device, with the gold finger facing back, and press the memory card until it clicks and inserts it into place.
4、Connection method
No.
Wiring name
Function

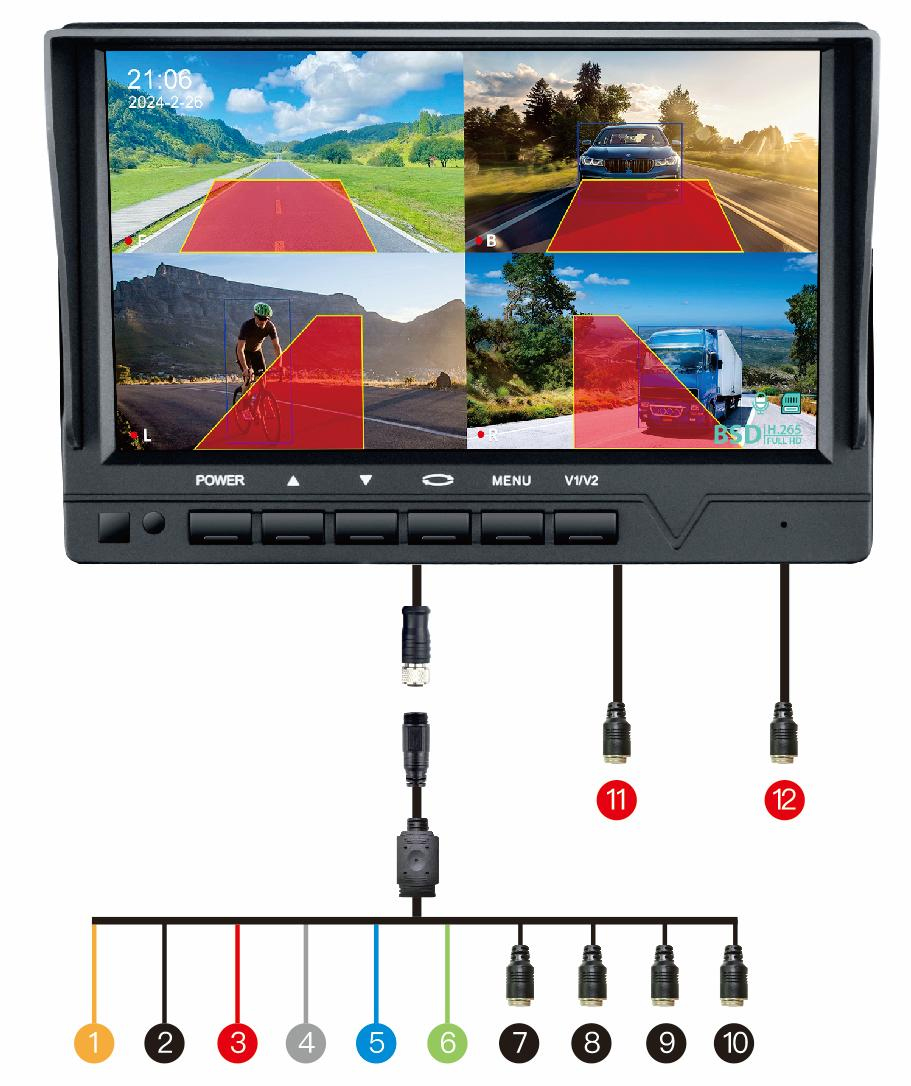

1
B+
Connect to the battery anode+
2
GND
Connect to the battery cathode-
3
ACC
Connect to Ignition line
4
CH2 trig
Reversing trigger, connect to the positive pole of the reversing light
5
CH3 trig
Left turn trigger, connect the positive pole of the left turn light
6
CH4 trig
Right turn trigger, connect the positive pole of the right turn light
7
CH1
the 1st camera
8
CH2
the 2nd video input(Connect the rearview camera)
9
CH3
the 3rd video input(Connect the left camera)
10
CH4
the forth video input(Connect the right camera)
11
alarm
connect to the sound and light alarm

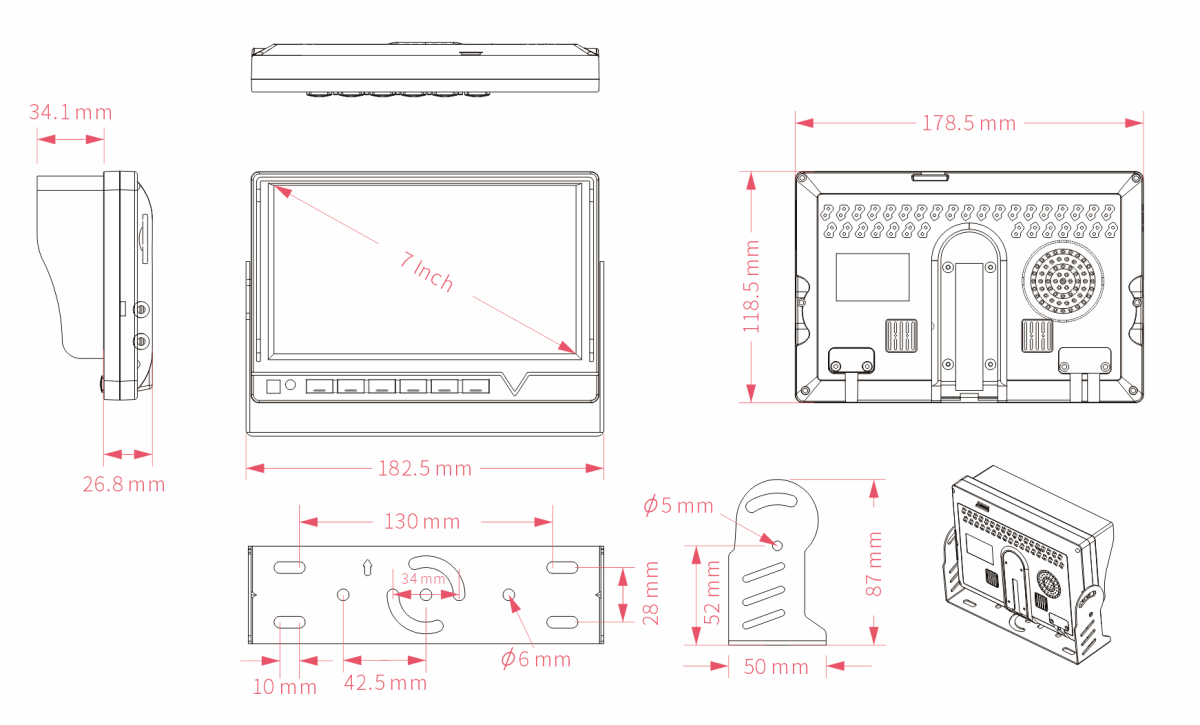

5、Product profile domensions and installation dimensions
